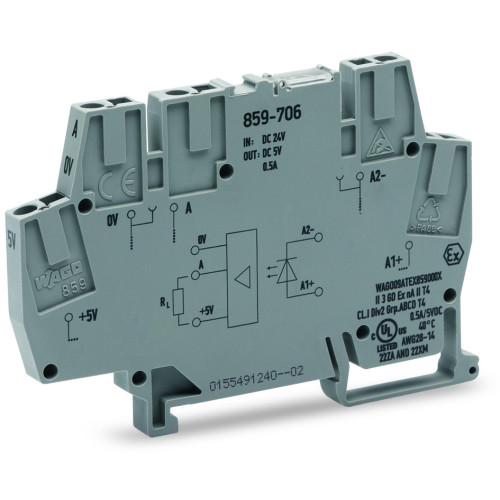

859-706

Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 4 … 6.25 VDC, gray

Manufacturer's No: 859-706     Manufacturer: WAGO
Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 4 … 6.25 VDC, gray

Availability On Request

£25.00
  • Optocoupler module
  • Nominal input voltage: 24 VDC
  • Limiting continuous current: 0.5 A
  • Frequency: 10 kHz
  • Module width: 6 mm
  • Color: Gray


Product

Manufacturer Material ID -
859-706
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

Input voltage -
18 Volt
Output voltage -
4 Volt
Rated operation current Ie -
0.5 Ampere
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
With LED indication -
