859-752

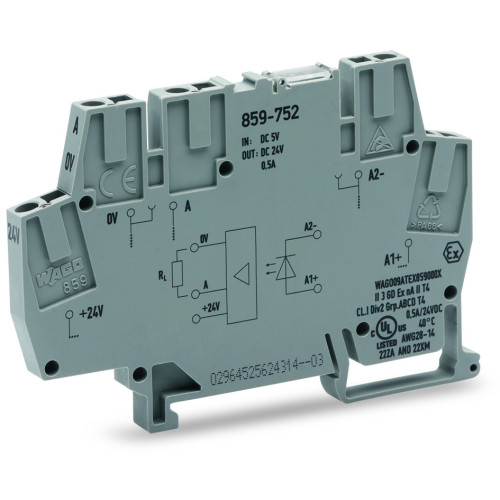

Optocoupler module, Nominal input voltage: 5 VDC, Output voltage range: 20 … 30 VDC, gray

Manufacturer's No: 859-752     Manufacturer: WAGO
Optocoupler module, Nominal input voltage: 5 VDC, Output voltage range: 20 … 30 VDC, gray

Availability Back Order

£26.43
  • Optocoupler module
  • Nominal input voltage: 5 VDC
  • Output voltage range: 0 to 24 VDC
  • Limiting continuous current: 0.5 A
  • Frequency: 10 kHz
  • Module width: 6 mm
  • Color: Gray


Product

Manufacturer Material ID -
859-752
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

Input voltage -
4 Volt
Output voltage -
20 Volt
Rated operation current Ie -
0.5 Ampere
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
With LED indication -

Availability Back Order

£26.43
