859-791

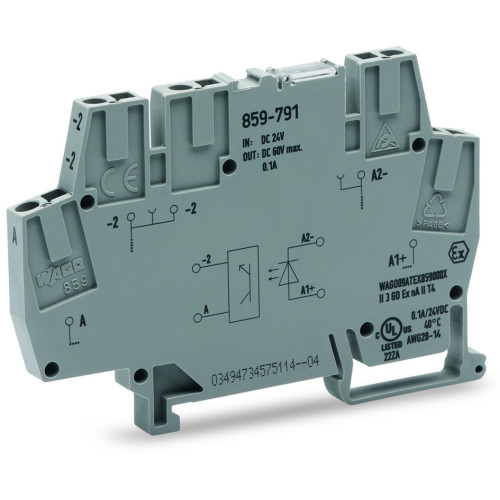

Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 3 … 60 VDC, gray

Manufacturer's No: 859-791     Manufacturer: WAGO
Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 3 … 60 VDC, gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£15.71
  • Optocoupler module
  • Nominal input voltage: 24 VDC
  • Output voltage range: 20-60 VDC
  • Limiting continuous current: 0.1 A
  • 2-wire connection
  • Railway application
  • Module width: 6 mm
  • Color: gray


Product

Manufacturer Material ID -
859-791
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

Input voltage -
16 Volt
Output voltage -
3 Volt
Rated operation current Ie -
0.2 Ampere
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
With LED indication -
