869-349

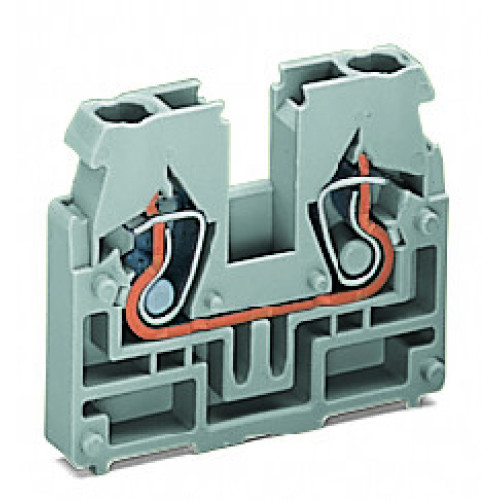

2-conductor end terminal block, without push-buttons, without snap-in mounting foot, light gray

Manufacturer's No: 869-349     Manufacturer: WAGO
2-conductor end terminal block, without push-buttons, without snap-in mounting foot, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 2-conductor end terminal block
  • 1-pole
  • CAGE CLAMP® technology
  • 2.5 mm² capacity
  • Light gray color
  • No push-buttons
  • No snap-in mounting foot


Product

Manufacturer Material ID -
869-349
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
33.4 Millimetre
Operation temperature -
-30 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
27.6 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
27.6 Millimetre
Halogen free -
Height -
33.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
1
Operating temperature -
-30 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
