870-1131

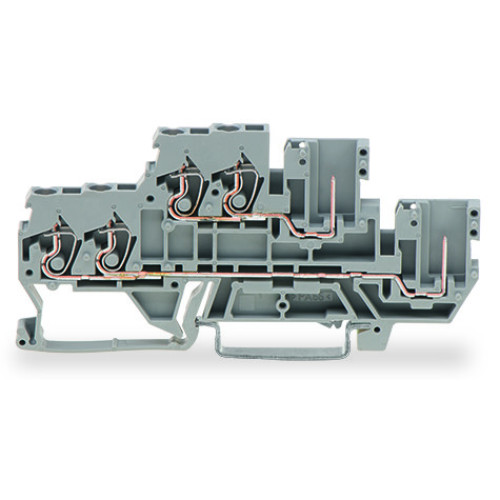

2-conductor/2-pin double-deck carrier terminal, 2-conductor/1-pin through terminal block, 2.5 mm², gray

Manufacturer's No: 870-1131     Manufacturer: WAGO
2-conductor/2-pin double-deck carrier terminal, 2-conductor/1-pin through terminal block, 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Terminal types: double-deck carrier terminal and through terminal block
  • Conductor capacity: 2.5 mm²
  • Pin configuration: 2 pins for double-deck carrier terminal, 1 pin for through terminal block
  • Mounting compatibility: DIN-rail 35 x 15 and 35 x 7.5
  • Connection method: CAGE CLAMP®
  • Color: gray


Product

Manufacturer Material ID -
870-1131
Net Weight -
0.72kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
91 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
39.8 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
39.8 Millimetre
Height -
91 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
2
Operating temperature -
105 Degrees celsius
Rated current In -
16 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
