870-131

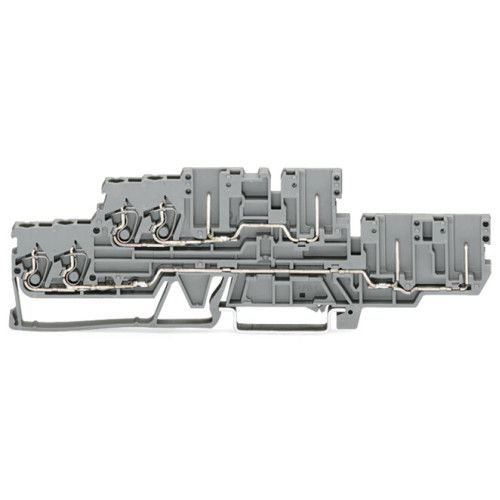

2-conductor/2-pin, double-deck carrier terminal block, Through/through terminal block, 2.5 mm², gray

Manufacturer's No: 870-131     Manufacturer: WAGO
2-conductor/2-pin, double-deck carrier terminal block, Through/through terminal block, 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.37
  • Terminal block type: 2-conductor/2-pin, double-deck carrier
  • Connection type: Through/through
  • Wire size: 2.5 mm²
  • Mounting: DIN-rail 35 x 15 and 35 x 7.5
  • Connection method: CAGE CLAMP®
  • Color: Gray


Product

Manufacturer Material ID -
870-131
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
40
UNSPSC -
39121402

Technical Specification

Length -
132.7 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
37.1 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
37.1 Millimetre
Height -
132.7 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Operating temperature -
105 Degrees celsius
Rated current In -
16 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.37
