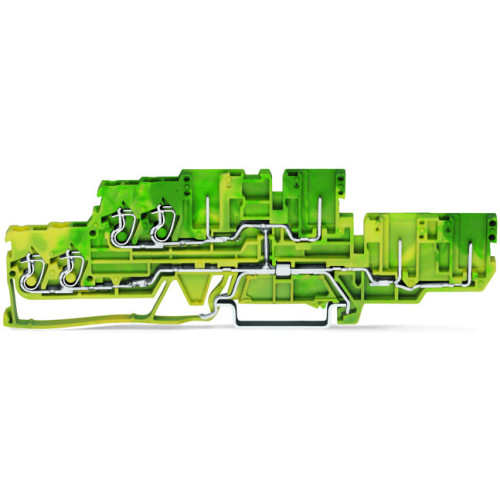

870-137

4-conductor/4-pin, double-deck carrier terminal block, 4-conductor/4-pin ground terminal block, 2.5 mm², green-yellow

Manufacturer's No: 870-137     Manufacturer: WAGO
4-conductor/4-pin, double-deck carrier terminal block, 4-conductor/4-pin ground terminal block, 2.5 mm², green-yellow

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.10
  • Terminal block type: Double-deck carrier with 4 conductors/4 pins
  • Ground terminal block: 4 conductors/4 pins
  • Wire size: 2.5 mm²
  • Connection method: CAGE CLAMP®
  • Internal commoning feature
  • Suitable for DIN-rail sizes 35 x 15 and 35 x 7.5
  • Color: Green-yellow


Product

Manufacturer Material ID -
870-137
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
40
UNSPSC -
39121410

Technical Specification

Length -
132.7 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
37.1 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
37.1 Millimetre
Height -
132.7 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
2
Operating temperature -
105 Degrees celsius
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.10
