870-523/281-590

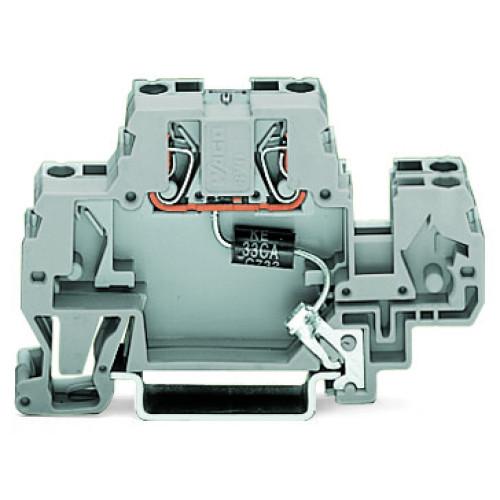

Component terminal block, double-deck, with suppressor diode, 48 VDC, for DIN-rail 35 x 15 and 35 x

Manufacturer's No: 870-523/281-590     Manufacturer: WAGO
Component terminal block, double-deck, with suppressor diode, 48 VDC, for DIN-rail 35 x 15 and 35 x

Availability Back Order

POA
  • Component: Terminal block
  • Configuration: Double-deck
  • Suppressor Diode: Included
  • Voltage: 48 VDC
  • DIN-rail Compatibility: 35 x 15 and 35 x 7.5
  • Wire Size: 2.5 mm²
  • Connection Type: CAGE CLAMP®
  • Color: Gray

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order

End and intermediate plate, 2 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 870-518
Price £0.40
Back Order

End and intermediate plate, 2 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 870-519
Price £0.40
In Stock

Insulation Stop, 0.08 - 0.2 mm S (0.14 mm F-St) 5 Pieces/Strip White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-470
Price £0.11
Back Order

Insulation Stop, 0.25 - 0.5 mm 5 Pieces/Strip Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-471
Price £0.11
Back Order

Insulation Stop D-Grey 0,75-1Sqmm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-472
Price £0.11
Back Order

Alternate Comb-Style Jumper Bar, Insulated 2-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-492
Price £0.96
Back Order


Product

Manufacturer Material ID -
870-523/281-590
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Length -
70 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
40 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
70 Millimetre
Height -
40 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
48 Volt
Type of component -
Suppressor diode
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10 Millimetre
