870-533

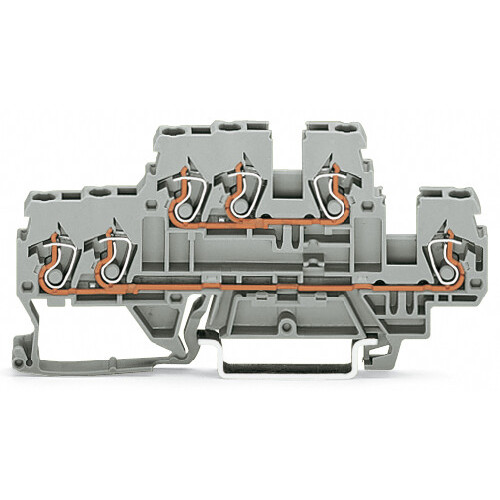

3-conductor, double-deck terminal block, Through/through terminal block, L/N, gray

Manufacturer's No: 870-533     Manufacturer: WAGO
3-conductor, double-deck terminal block, Through/through terminal block, L/N, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.62
  • 3-conductor double-deck terminal block
  • Through/through terminal block for DIN-rail 35 x 15 and 35 x 7.5
  • Rated for 2.5 mm² wire size
  • Features CAGE CLAMP® technology
  • Color: gray


Product

Manufacturer Material ID -
870-533
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
91 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
40 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
40 Millimetre
Height -
91 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
2
Operating temperature -
105 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre
