870-536

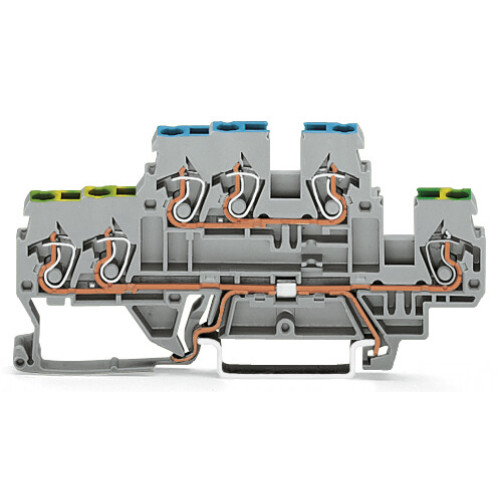

3-conductor, double-deck terminal block, Ground conductor/through terminal block, 2.5 mm², gray

Manufacturer's No: 870-536     Manufacturer: WAGO
3-conductor, double-deck terminal block, Ground conductor/through terminal block, 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.31
  • 3-conductor double-deck terminal block
  • Ground conductor/through terminal block
  • Conductor size: 2.5 mm²
  • Color: Green-yellow conductor entry
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes CAGE CLAMP® technology
  • Conductor size for CAGE CLAMP®: 2.50 mm²
  • Color: Gray


Product

Manufacturer Material ID -
870-536
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
91 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
40 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
40 Millimetre
Height -
91 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
2
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.31
