870-567

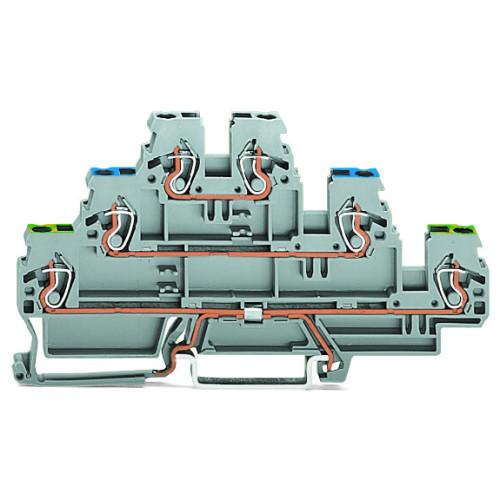

Triple-deck terminal block, Ground conductor/through/through terminal block, 2.5 mm², gray

Manufacturer's No: 870-567     Manufacturer: WAGO
Triple-deck terminal block, Ground conductor/through/through terminal block, 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.60
  • Triple-deck terminal block
  • Ground conductor/through/through terminal block
  • 2.5 mm² wire size
  • PE/N/L connections
  • Without marker carrier
  • Compatible with DIN-rail 35 x 15 and 35 x 7.5
  • CAGE CLAMP® technology
  • Color: gray


Product

Manufacturer Material ID -
870-567
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
106 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
52.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
52.5 Millimetre
Height -
106 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
3
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.60
