870-590/281-410

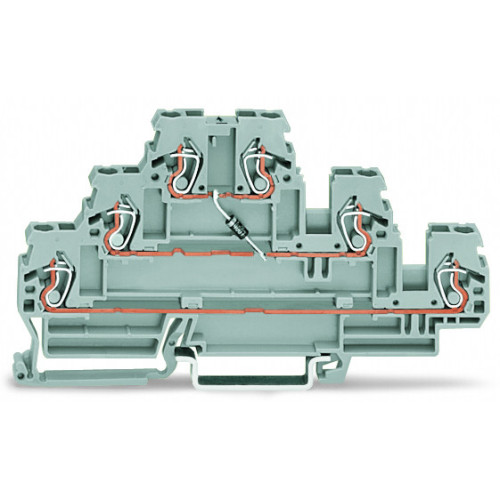

Component terminal block, triple-deck, with diode 1N4007, gray

Manufacturer's No: 870-590/281-410     Manufacturer: WAGO
Component terminal block, triple-deck, with diode 1N4007, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£6.39
  • Component: Terminal block
  • Configuration: Triple-deck
  • Diode: 1N4007 (anode on the left side)
  • Compatible with DIN-rail sizes: 35 x 15 and 35 x 7.5
  • Wire size: 2.5 mm²
  • Connection type: CAGE CLAMP®
  • Maximum wire size: 2.50 mm²
  • Color: Gray


Product

Manufacturer Material ID -
870-590/281-410
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
106 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
52.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
52.5 Millimetre
Height -
106 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Internally connected stages -
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
3
Operating temperature -
105 Degrees celsius
Rated current In -
0.5 Ampere
Rated voltage -
250 Volt
Type of component -
Diode
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£6.39
