870-590/281-411

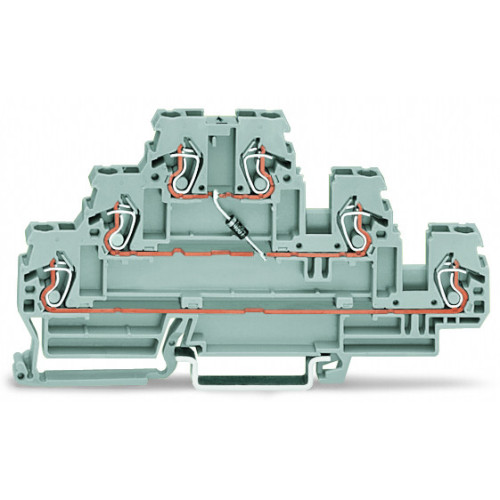

Component terminal block, triple-deck, with diode 1N4007, anode, right side, for DIN-rail 35 x 15 an

Manufacturer's No: 870-590/281-411     Manufacturer: WAGO
Component terminal block, triple-deck, with diode 1N4007, anode, right side, for DIN-rail 35 x 15 an

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£6.39
  • Component: Terminal block
  • Configuration: Triple-deck
  • Diode: 1N4007
  • Diode Placement: Anode on the right side
  • Mounting: DIN-rail 35 x 15 mm


Product

Manufacturer Material ID -
870-590/281-411
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
106 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
52.5 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Grey
Rated voltage -
250 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Closing plate required -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Type of component -
Diode
Number of levels -
3
Number of clamp positions per level -
2
Internally connected stages -
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
0.5 Ampere
