880-662

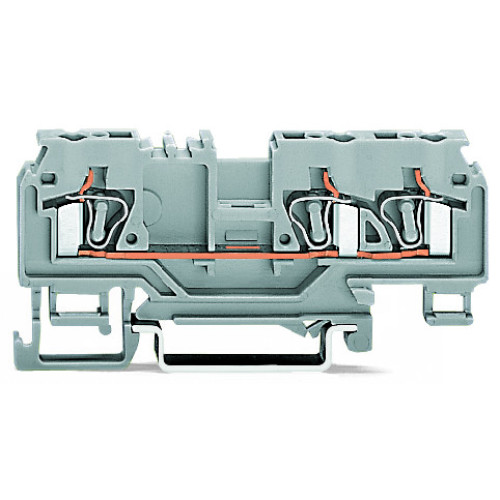

3-Conductor Through Terminal Block, With Shield Contact With Test Port For 2 mm And 3 mm Ø Orange

Manufacturer's No: 880-662     Manufacturer: WAGO
3-Conductor Through Terminal Block, With Shield Contact With Test Port For 2 mm And 3 mm Ø Orange

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£2.29
  • 3-Conductor Through Terminal Block
  • With Shield Contact and Test Port
  • Accommodates 2 mm and 3 mm Ø wires
  • Maximum insulation diameter: 4.4 mm


Product

Manufacturer Material ID -
880-662
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
92.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
29 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Orange
Rated voltage -
400 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Closing plate required -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Number of levels -
1
Number of clamp positions per level -
3
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
25 Ampere

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£2.29
