883-3501

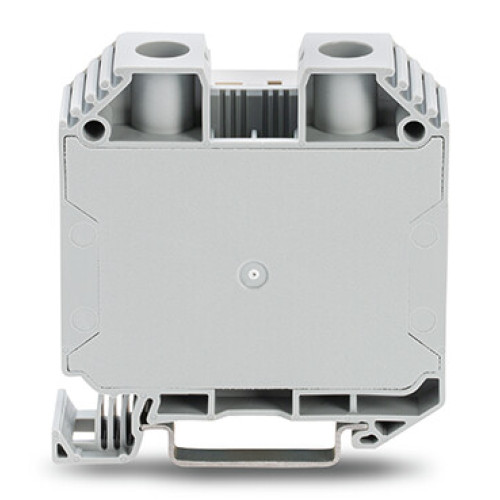

2-conductor through terminal block, 35 mm², with screw-type connection, gray

Manufacturer's No: 883-3501     Manufacturer: WAGO
2-conductor through terminal block, 35 mm², with screw-type connection, gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.50

£3.30
  • Terminal block type: 2-conductor
  • Conductor size: 35 mm²
  • Connection type: Screw-type
  • Color: Gray


Product

Manufacturer Material ID -
883-3501
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
1.5 Square millimetre
Depth -
65.5 Millimetre
Height -
59 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-40 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
16.1 Millimetre

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.50

£3.30
