885-106

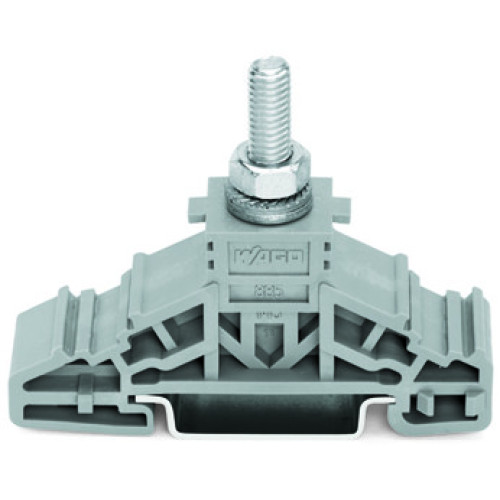

Stud terminal block, lateral marker slots, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 885-106     Manufacturer: WAGO
Stud terminal block, lateral marker slots, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability Available to order

£13.58
  • Stud terminal block

  • 1 stud, M6

  • For DIN-rail 35 x 15 and 35 x 7.5

  • Lateral marker slots

  • 35.00 mm²

  • Color: Gray

Separator plate, 2 mm thick, 110.3 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-528
Price £2.82
Available to order

Cover, 1 m long, transparent

Product Code - 885-566
Price £22.32
Available to order

Mounting adapter, for cover, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-580
Price £2.15
Available to order

Separator plate, 2 mm thick, 102.3 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-526
Price £2.72
Available to order

Jumper, 2-way, unplated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-406
Price £6.51
Available to order

Jumper, 3-way, unplated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-426
Price £7.85
Available to order

Step-down jumper, M8 to M6, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-448
Price £7.08
Available to order

Step-down jumper, M10 to M6, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-470
Price £7.08
Available to order

Empty housing, M6, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 885-506
Price £2.04
Available to order


Product

Manufacturer Material ID -
885-106
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
Export Control Regulations -
85369010
Minimum Order Quantity -
None
RoHs Compliance -
products/0200001100008d3e000100b6.jpg
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
67 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
17.8 Millimetre
Height at lowest possible mounting height -
48.7 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Depth -
48.7 Millimetre
Height -
67 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
1
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Bolt connection
Type of electrical connection 2 -
Bolt connection
Width -
17.8 Millimetre

Availability Available to order

£13.58
