890-115

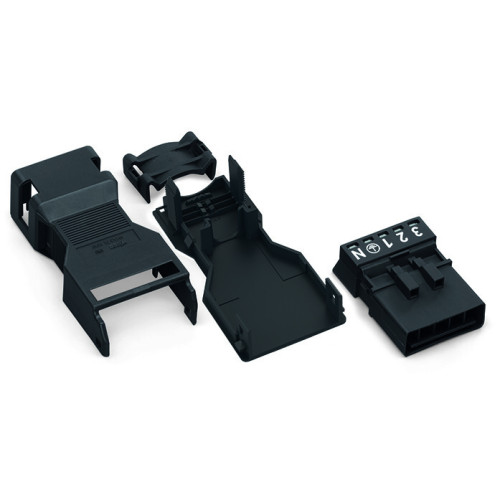

Plug, with strain relief housing, 5-pole, black

Manufacturer's No: 890-115     Manufacturer: WAGO
Plug, with strain relief housing, 5-pole, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.72
  • Plug with strain relief housing
  • 5-pole
  • Wire size: 1.50 mm²
  • Color: Black


Product

Manufacturer Material ID -
890-115
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
3, N, PE, 2, 1
Colour coding/contact insert -
Black
Cable diameter -
6.5 Millimetre
Connection cross section (fine-strand) -
0.25 Square millimetre
Connection cross section (solid-core) -
0.25 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.08528 Kilowatthour
Halogen free -
Height -
15.8 Millimetre
Housing material -
Polyamide (PA)
Length -
71.9 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
1
Number of poles -
5
Pollution degree -
3
Rated current -
13 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
26.7 Millimetre
With strain relief -

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.72
