890-1907

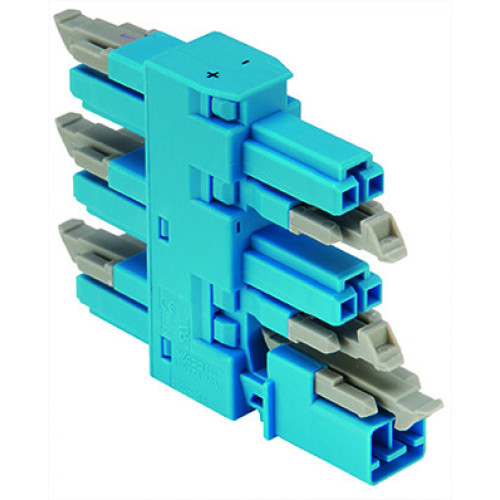

5-way distribution connector, 2-pole, Cod. I, blue

Manufacturer's No: 890-1907     Manufacturer: WAGO
5-way distribution connector, 2-pole, Cod. I, blue

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£7.61
  • 5-way distribution connector
  • 2-pole
  • Cod. I
  • 1 input
  • 5 outputs
  • Color: blue


Product

Manufacturer Material ID -
890-1907
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Phase pickup -
UN
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Blue
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.01639 Kilowatthour
Halogen free -
Height -
43.6 Millimetre
Housing material -
Polyamide (PA)
Length -
63.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
With separate adapter
Number of inputs -
1
Number of outputs -
5
Number of poles -
2
Pollution degree -
3
Rated current -
16 Ampere
Rated current to luminaire -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of distributor -
Distribution terminal block
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
12 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£7.61
