890-212/342-000

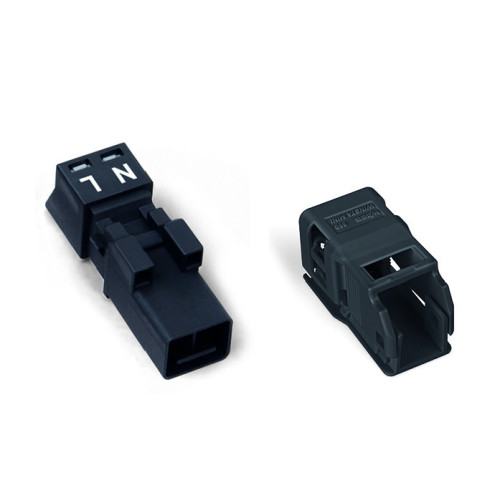

Plug, with strain relief housing, 2-pole, black

Manufacturer's No: 890-212/342-000     Manufacturer: WAGO
Plug, with strain relief housing, 2-pole, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Plug with strain relief housing
  • 2-pole
  • Cod. A
  • Wire size: 1.50 mm²
  • Color: Black


Product

Manufacturer Material ID -
890-212/342-000
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N
Colour coding/contact insert -
Black
Cable diameter -
3.8 Millimetre
Connection cross section (fine-strand) -
0.25 Square millimetre
Connection cross section (solid-core) -
0.25 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.03361 Kilowatthour
Halogen free -
Height -
13.2 Millimetre
Housing material -
Polyamide (PA)
Length -
46.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
1
Number of poles -
2
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
15.6 Millimetre
With strain relief -
