890-214

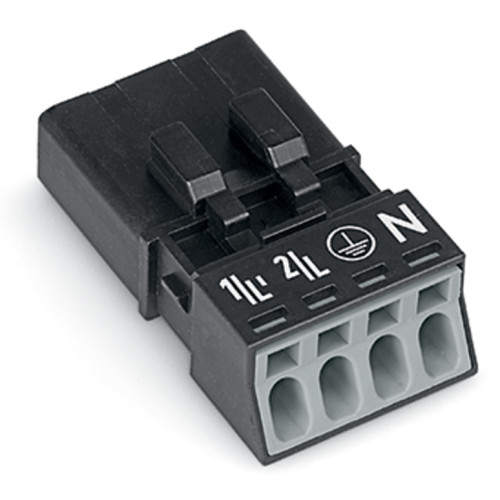

Plug, 4-pole, Cod. A, black

Manufacturer's No: 890-214     Manufacturer: WAGO
Plug, 4-pole, Cod. A, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.51
  • Plug type: 4-pole
  • Code: A
  • Wire size: 1.50 mm²
  • Color: Black


Product

Manufacturer Material ID -
890-214
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Pole codification -
UN
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Connection cross section (fine-strand) -
0.25 Square millimetre
Connection cross section (solid-core) -
0.25 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.0275 Kilowatthour
Halogen free -
Height -
11.7 Millimetre
Housing material -
Polyamide (PA)
Length -
34.1 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
1
Number of poles -
4
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
19.2 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.51
