890-605

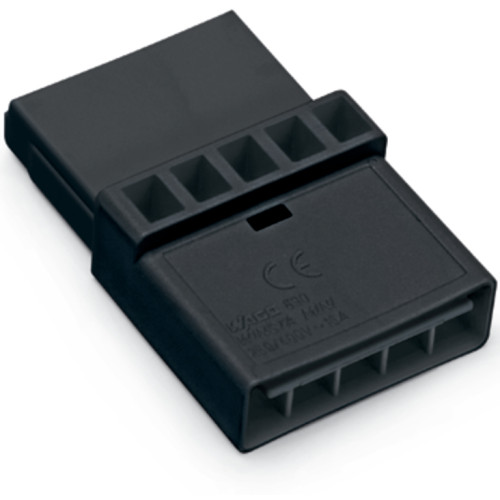

Intermediate coupler, 5-pole, Cod. A, black

Manufacturer's No: 890-605     Manufacturer: WAGO
Intermediate coupler, 5-pole, Cod. A, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Type: Intermediate coupler
  • Number of poles: 5
  • Color: Black
  • Compatibility: Sockets and plugs
  • Product code: A


Product

Manufacturer Material ID -
890-605
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Phase pickup -
UN
Locking mechanism -
None
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
3, N, PE, 2, 1
Colour coding/contact insert -
Black
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.02611 Kilowatthour
Halogen free -
Height -
10.5 Millimetre
Housing material -
Polyamide (PA)
Length -
37.2 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
No
Number of inputs -
5
Number of outputs -
5
Number of poles -
5
Pollution degree -
3
Rated current -
16 Ampere
Rated current to luminaire -
16 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of distributor -
Intermediate coupling
Type of integrated switching -
None
Type of locking -
None
Width -
14.5 Millimetre
