890-704

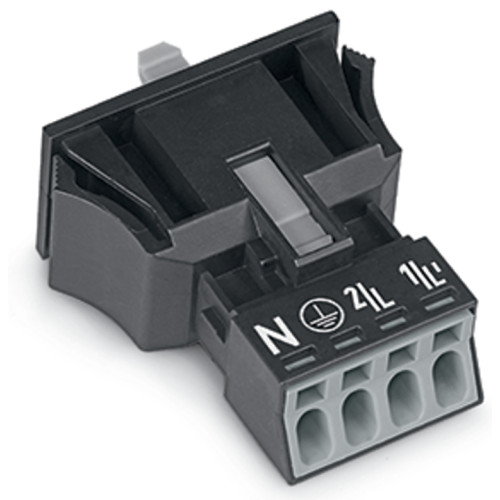

Snap-in socket, 4-pole, Cod. A, black

Manufacturer's No: 890-704     Manufacturer: WAGO
Snap-in socket, 4-pole, Cod. A, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.91
  • Snap-in socket
  • 4-pole
  • Cod. A
  • Wire size: 1.50 mm²
  • Color: Black


Product

Manufacturer Material ID -
890-704
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Length soldering pin -
- Millimetre
Wall thickness housing -
- Millimetre
Colour housing -
Black
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Angle of inclination -
0 Degrees
Angle of plug -
Straight
Built-in version -
Snap-in/screw-in device
Colour of the separate adapter piece -
Without adapter piece
Connection cross section (fine-strand) -
0.25 Square millimetre
Connection cross section (solid-core) -
0.25 Square millimetre
Connection size thread -
No thread connection
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.00917 Kilowatthour
Halogen free -
Height -
16 Millimetre
Housing colour -
Black
Housing material -
Polyamide (PA)
Length -
39.85 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
1
Number of poles -
4
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Integrated in plug-in connector
Width -
28.6 Millimetre
