890-802

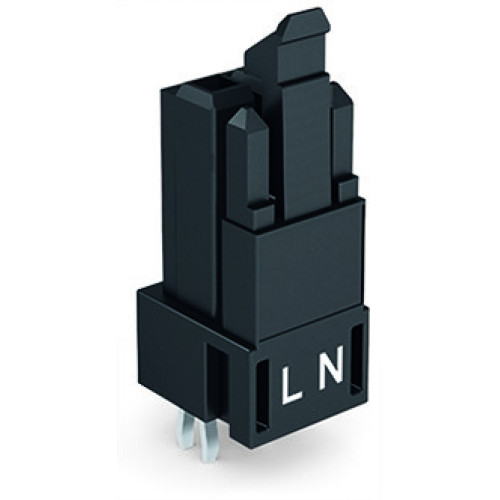

Socket for PCBs, straight, 2-pole, black

Manufacturer's No: 890-802     Manufacturer: WAGO
Socket for PCBs, straight, 2-pole, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.45
  • Socket type: Straight
  • Number of poles: 2
  • Color: Black
  • Product code: A


Product

Manufacturer Material ID -
890-802
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Connection type -
UN
Cable diameter -
- Millimetre
Fire load -
- Kilowatthour
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Width -
10.4 Millimetre
Model -
Bus
Height -
28.4 Millimetre
Locking mechanism -
Integrated in plug-in connector
Rated current -
16 Ampere
Length -
12.2 Millimetre
Material housing -
Polyamide (PA)
Surface finish contacts -
Other
Mechanical coding -
Continuity resistor -
3 Milli-Ohm
Contact material -
Other
Degree of protection (IP) -
IP20
Number of connections per pole -
1
Pole codification -
L, N
Colour coding/contact insert -
Black
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Type of connection -
Flexible PCB-connector
Operating temperature -
-35 Degrees celsius
Over voltage category -
III
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Bus
Diameter connection pin -
1.28 Millimetre
Housing colour -
Black
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.5 Millimetre
Material insulation body -
Polyamide (PA)
Material of contact surface -
Tin
Modular spacing connections -
4.4 Millimetre
Modular spacing contacts -
4.4 Millimetre
Number of plug-in contact rows -
1
Number of poles -
2
Pollution degree -
3
Rated current In -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Type of banding -
None
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
