891-8994/016-702

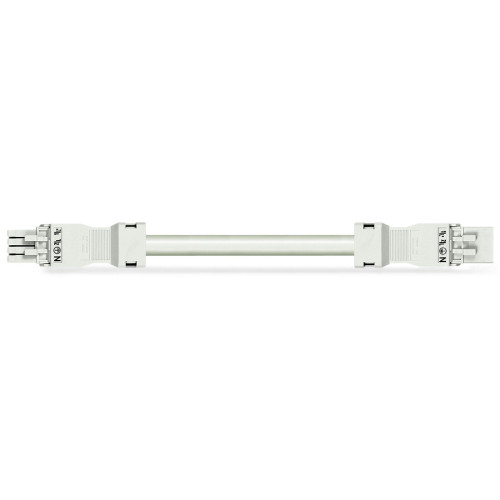

pre-assembled interconnecting cable, Eca, Socket/plug, white

Manufacturer's No: 891-8994/016-702     Manufacturer: WAGO
pre-assembled interconnecting cable, Eca, Socket/plug, white

Availability On Request

POA
  • Pre-assembled interconnecting cable
  • Eca rated
  • 4-pole socket/plug
  • Cable type: H05Z1Z1-F
  • 4 cores of 1.5 mm² each
  • Length: 7 meters
  • Color: White


Product

Manufacturer Material ID -
891-8994/016-702
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
PL
UNSPSC -
39121402

Technical Specification

Strip length -
- Millimetre
Dismantle length -
- Millimetre
Nominal cross section conductor -
1.5 Square millimetre
Colour housing -
White
Locking mechanism -
Separate
Colour outer sheath -
White
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Conductor end treatment -
Ultrasonic compressed wire ends
Cable diameter -
8.4 Millimetre
Cable permanent temperature-resistant to -
70 Degrees celsius
Cable type -
H05Z1Z1-F
Colour coding/contact insert -
White
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
58.132328 Kilowatthour
Halogen free -
Housing colour -
White
Housing material -
Polyamide (PA)
Insulating piece permanent temperature-resistant -
105 Degrees celsius
Max. operation temperature at conductor -
85 Degrees celsius
Mechanical coding -
Nominal cross sectional area of conductor -
1.5 Square millimetre
Number of poles -
4
Pole codification -
Other
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
White
Surface finish contacts -
Tinned
Total length -
7000 Millimetre
Type of finished cable -
Connecting cable
Type of locking -
Separate
Type side 1 -
Bus
Type side 2 -
Plug
