893-1022

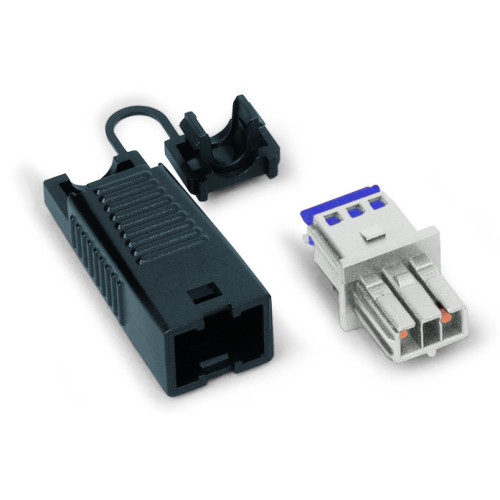

Socket, with strain relief housing, 2-pole, light gray

Manufacturer's No: 893-1022     Manufacturer: WAGO
Socket, with strain relief housing, 2-pole, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.60
  • Socket with strain relief housing
  • 2-pole configuration
  • Cod. F
  • Color: Light gray


Product

Manufacturer Material ID -
893-1022
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CH
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Locking mechanism -
None
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
1+, 2-
Colour coding/contact insert -
Grey
Cable diameter -
5 Millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
3 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.04167 Kilowatthour
Halogen free -
Height -
11.1 Millimetre
Housing material -
Polyamide (PA)
Length -
47.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
1
Number of poles -
2
Pollution degree -
3
Rated current -
3 Ampere
Rated surge voltage -
0.8 Kilovolt
Rated voltage -
50 Volt
Surface finish contacts -
Tinned
Type of locking -
None
Width -
14.1 Millimetre
With strain relief -

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£5.60
