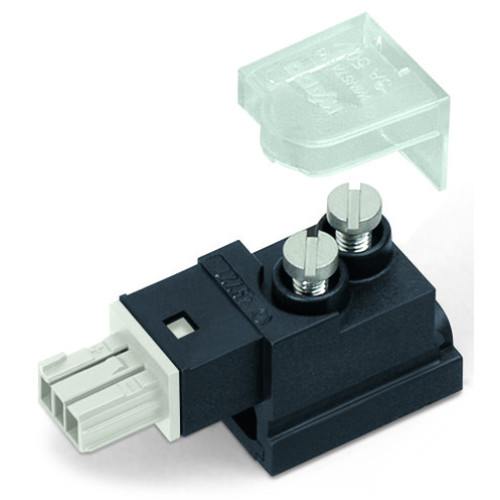

893-129

Tap-off module, for flat cable, 2-pole, light gray

Manufacturer's No: 893-129     Manufacturer: WAGO
Tap-off module, for flat cable, 2-pole, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£13.91
  • Tap-off module for flat cable
  • 2-pole configuration
  • Cable connection on the output side
  • Light gray color


Product

Manufacturer Material ID -
893-129
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CH
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Phase pickup -
UN
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Colour housing -
Black
Locking mechanism -
None
Material housing -
Polyamide (PA)
Degree of protection (IP) -
IP20
Pole codification -
1+, 2-
Colour coding/contact insert -
Grey
Connection round cable -
Screw connection
Contact material -
CuSn
Degree of protection (IP rating) -
IP20
Fire load -
0 Kilowatthour
Height -
23.3 Millimetre
Housing colour -
Black
Housing material -
Polyamide (PA)
Length -
46.7 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Branch
Number of poles -
2
Rated current -
3 Ampere
Rated voltage -
50 Volt
Type of integrated switching -
None
Type of locking -
None
Width -
17.7 Millimetre
