896-231

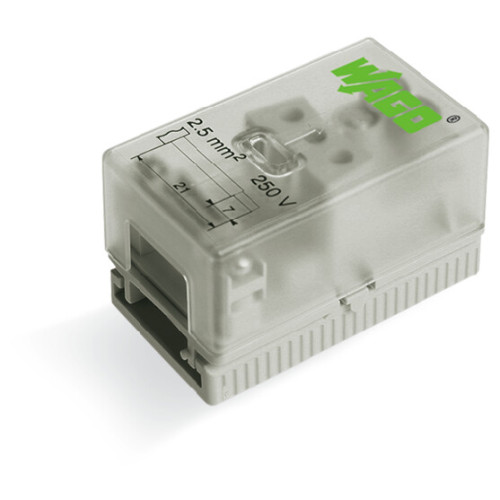

Supply module, for flat cable, 3 x 2.5 mm², gray

Manufacturer's No: 896-231     Manufacturer: WAGO
Supply module, for flat cable, 3 x 2.5 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£15.41
  • Supply module for flat cable
  • 3-pole connection
  • Cable size: 3 x 2.5 mm²
  • Color: Gray


Product

Manufacturer Material ID -
896-231
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CH
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Cable diameter -
- Millimetre
Pole codification -
UN
Connection round cable -
UN
Phase pickup -
UN
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Colour housing -
Other
Locking mechanism -
None
Material housing -
Other
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Other
Contact material -
CuSn
Degree of protection (IP rating) -
IP20
Fire load -
0.24 Kilowatthour
Height -
33 Millimetre
Housing colour -
Other
Housing material -
Polyamide (PA)
Length -
55 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Model -
Power supply system
Number of poles -
3
Rated current -
24 Ampere
Rated voltage -
250 Volt
Type of integrated switching -
None
Type of locking -
None
Width -
33 Millimetre
