897-453

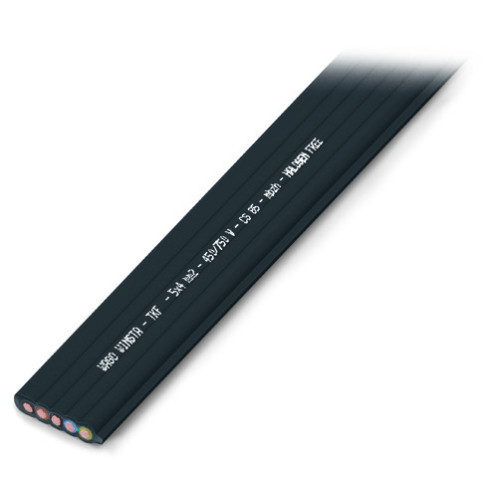

Flat cable, Eca, 5G 4 mm², black

Manufacturer's No: 897-453     Manufacturer: WAGO
Flat cable, Eca, 5G 4 mm², black

Availability On Request

POA
  • Flat cable
  • 5G 4 mm²
  • Halogen-free
  • 3L + N + PE
  • Voltage rating: 0.6/1 kV
  • Color: Black


Product

Manufacturer Material ID -
897-453
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CH
UNSPSC -
39121402

Technical Specification

Core insulation material -
UN
Screen over stranding element -
UN
Screen over stranding -
UN
Material outer sheath -
UN
Outer diameter approx. -
- Millimetre
Reaction-to-fire class according to EN 13501-6 -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
AWG size -
UN
Nominal cross section conductor (AWG) -
- 1000 circular mil
Min. permitted bending radius, moving application with forced guidance -
- Millimetre
Min. permitted bending radius, moving application/free movement -
- Millimetre
Min. permitted bending radius, stationary application/permanent installation -
- Millimetre
Specification core insulation -
UN
Specification material outer sheath -
UN
Shape -
Flat
Nominal cross section conductor -
4 Square millimetre
Colour outer sheath -
Black
Protective conductor -
Low smoke (acc. EN 61034-2) -
Halogen free (acc. EN 60754-1/2) -
Flame retardant -
No
Low smoke (acc. BS EN 61034-2) -
Halogen free according to EN 60754-1/2 -
Cable geometry -
Flat
Cable height approx. -
6.1 Millimetre
Cable width approx. -
24.1 Millimetre
Conductor category -
Class 5 = flexible
Conductor material -
Copper
Conductor surface -
Bare
Core identification -
Colour
Halogen free according to IEC 60754-1 -
Halogen free according to IEC 60754-2 -
Halogen free according to IEC 60754-3 -
Individual screen type -
None
Nominal cross sectional area of conductor -
4 Square millimetre
Nominal voltage U -
1000 Volt
Nominal voltage U0 -
600 Volt
Number of cores -
5
Overall screen type -
None
Permitted cable outer temperature after assembling without vibration -
-25 Degrees celsius
Permitted cable outer temperature during assembling/handling -
5 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Shape of conductor -
Round
Sheath colour -
Black
Stranding element -
No
Suspension element -
None
Weight -
320 Kilogram per kilometer
With protective conductor -
