899-631/104-000

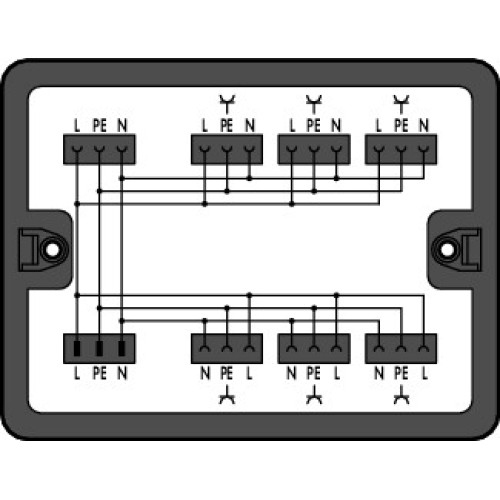

Distribution box, Single-phase current (230 V), 1 input, black

Manufacturer's No: 899-631/104-000     Manufacturer: WAGO
Distribution box, Single-phase current (230 V), 1 input, black

Availability On Request

£68.69
  • Distribution box for single-phase current at 230V
  • 1 input and 7 outputs
  • Cod. A model with MIDI feature
  • Color: black


Product

Manufacturer Material ID -
899-631/104-000
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
1 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Colour of the separate adapter piece -
Without adapter piece
Contact material -
Other
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
21.48667 Kilowatthour
Halogen free -
Height -
30 Millimetre
Housing material -
Polyamide (PA)
Length -
190 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
With separate adapter
Number of inputs -
1
Number of outputs -
7
Number of poles -
3
Phase pickup -
L1
Pollution degree -
3
Rated current -
25 Ampere
Rated current to luminaire -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of distributor -
Distribution terminal block
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
145 Millimetre

Availability On Request

£68.69
