899-631/315-000

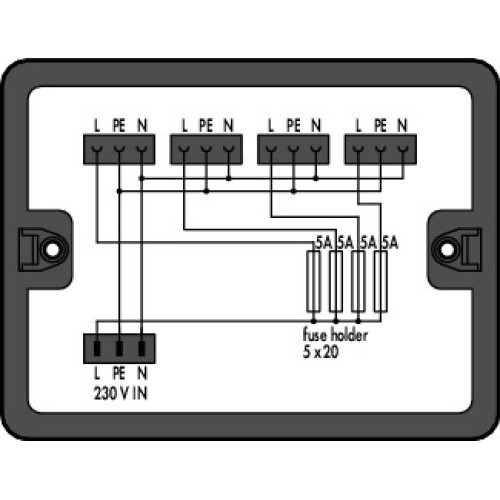

Distribution box, Cable and device protection, 1 input, black

Manufacturer's No: 899-631/315-000     Manufacturer: WAGO
Distribution box, Cable and device protection, 1 input, black

Availability On Request

POA
  • Distribution box for cable and device protection
  • 1 input and 4 outputs
  • Features Cod. A and MIDI connectivity
  • Color: black


Product

Manufacturer Material ID -
899-631/315-000
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Phase pickup -
UN
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
1 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Colour of the separate adapter piece -
Without adapter piece
Contact material -
Other
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
8.57139 Kilowatthour
Halogen free -
Height -
30 Millimetre
Housing material -
Polyamide (PA)
Length -
190 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
With separate adapter
Number of inputs -
1
Number of outputs -
4
Number of poles -
3
Pollution degree -
3
Rated current -
5 Ampere
Rated current to luminaire -
5 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of distributor -
Distribution terminal block
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
145 Millimetre
