899-632/102-000

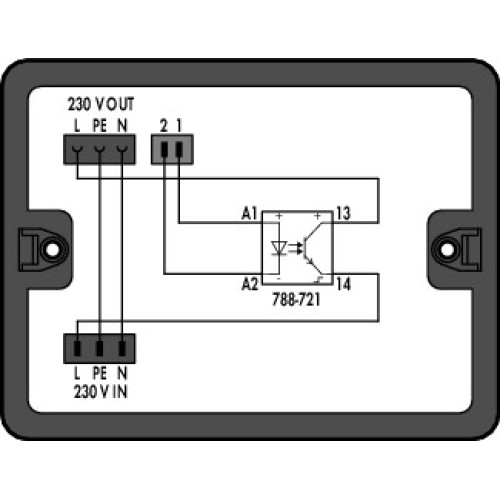

Distribution box, Relay switching, 2 inputs, black

Manufacturer's No: 899-632/102-000     Manufacturer: WAGO
Distribution box, Relay switching, 2 inputs, black

Availability On Request

POA
  • Distribution box with relay switching
  • 2 inputs and 1 output
  • Cod. A and B models available
  • Available in MINI and MIDI sizes
  • Color: black


Product

Manufacturer Material ID -
899-632/102-000
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Colour coding/contact insert -
Black
Colour of the separate adapter piece -
Without adapter piece
Contact material -
Other
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
1.86528 Kilowatthour
Halogen free -
Height -
30 Millimetre
Housing material -
Polyamide (PA)
Length -
190 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
With separate adapter
Number of inputs -
2
Number of outputs -
1
Pollution degree -
3
Surface finish contacts -
Tinned
Type of distributor -
Distribution terminal block
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
145 Millimetre

Availability On Request

POA
