8GB13712

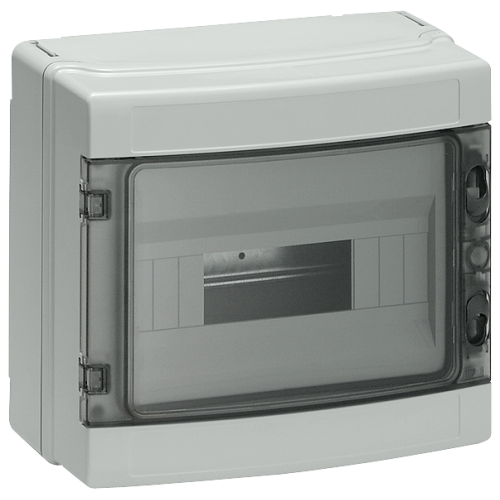

SIMBOX Universal WP Wall-mounted distribution board FM, IP65 1-tier, 12 MW, without Terminal strip

Manufacturer's No: 8GB1371-2     Manufacturer: Siemens
SIMBOX Universal WP Wall-mounted distribution board FM, IP65 1-tier, 12 MW, without Terminal strip

Availability Back Order

£86.42
  • SIMBOX Universal WP Wall-mounted distribution board
  • FM and IP65 rated
  • 1-tier design
  • Capacity: 12 MW
  • Terminal strip not included

Accessories

ALPHA DIN, cover strips

Product Code - 8GK99100KK00
Price £4.78
Back Order
Price £12.67
Back Order
Price £40.43
Back Order


Product

Manufacturer Material ID -
8GB1371-2
Net Weight -
1.48kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Export Control Regulations -
N / N
UNSPSC -
31261502

Technical Specification

Internal depth -
- Millimetre
RAL-number -
7035
Built-in depth -
70 Millimetre
Type of cover -
Door
DIN-rail -
Material housing -
Other
Degree of protection (IP) -
IP65
RAL number -
7035
Colour -
Grey
Cover model -
Closed
Degree of protection (IP rating) -
IP65
Depth -
140 Millimetre
Height -
260 Millimetre
Housing material -
Other
Mounting method -
Surface mounted
Number of rows -
1
Recess depth -
70 Millimetre
Recess height -
260 Millimetre
Recess width -
298 Millimetre
Transparent cover/door -
Type of closure -
Other
Type of covering -
Door
Width -
298 Millimetre
Width in number of modular spacings -
12
With DIN-rail -

Availability Back Order

£86.42
