8GK10521KK11

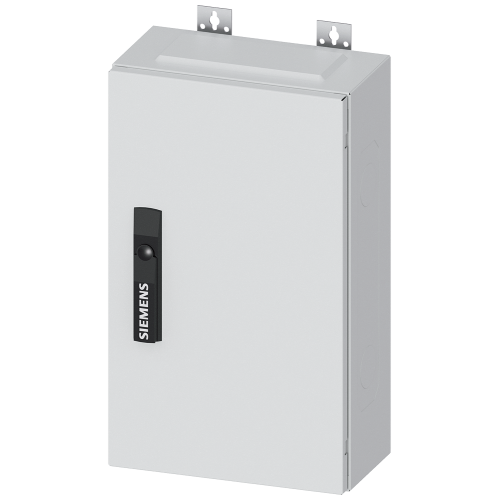

ALPHA 160, wall-mounted cabinet, surface mounting, with distribution board panel, IP44, protection class 2

Manufacturer's No: 8GK1052-1KK11     Manufacturer: Siemens
ALPHA 160, wall-mounted cabinet, surface mounting, with distribution board panel, IP44, protection class 2

Availability On Request

£557.86
  • Wall-mounted cabinet
  • Surface mounting
  • Distribution board panel included
  • IP44 rated for protection against solids and water
  • Protection class 2
  • Dimensions: 500 mm (H) x 300 mm (W) x 140 mm (D)
  • Finished in RAL 9016 color
Product video
Product video


Product

Manufacturer Material ID -
8GK1052-1KK11
Net Weight -
6.56kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121410

Technical Specification

Number of conduit inlets -
-
Number of modules -
-
Plate thickness cabinet -
- Millimetre
Mounting method -
Surface mounted (plaster)
Protection class -
II
Colour -
White
RAL-number -
9016
Built-in depth -
140 Millimetre
Type of cover -
Door
Internal depth -
140 Millimetre
Material housing -
Steel
Impact strength -
IK08
Type of door -
Single
Degree of protection (IP) -
IP43
Plate thickness door/cover -
0.75 Millimetre
Cover model -
None
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Degree of protection (IP rating) -
IP44
Depth -
140 Millimetre
Extension possible -
Height -
500 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK08
Nominal current (In) -
160 Ampere
Number of openings for flange plates -
2
Number of rows -
3
RAL number -
9016
Recess depth -
140 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Width -
300 Millimetre
Width in number of modular spacings -
36

Availability On Request

£557.86
