8GK11023KK32

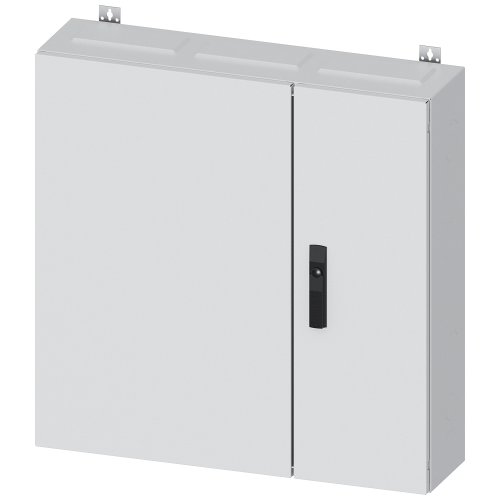

ALPHA 400, wall-mounted cabinet, flat pack, IP43, protection class 1, H: 800 mm, W: 800 mm

Manufacturer's No: 8GK1102-3KK32     Manufacturer: Siemens
ALPHA 400, wall-mounted cabinet, flat pack, IP43, protection class 1, H: 800 mm, W: 800 mm

Availability On Request

£836.03
  • Wall-mounted cabinet
  • Flat Pack design
  • IP43 rated for protection
  • Dimensions: 800 mm (H) x 800 mm (W) x 210 mm (T)
  • RAL 9016 color
  • Protection class 1
Product video
Product video


Product

Manufacturer Material ID -
8GK1102-3KK32
Net Weight -
20.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121410

Technical Specification

Number of conduit inlets -
-
Number of modules -
-
Plate thickness cabinet -
- Millimetre
Mounting method -
Other
Protection class -
I
Colour -
White
RAL-number -
9016
Built-in depth -
210 Millimetre
Type of cover -
Door
Internal depth -
210 Millimetre
Material housing -
Steel
Impact strength -
IK09
Type of door -
Double
Degree of protection (IP) -
IP43
Plate thickness door/cover -
0.75 Millimetre
Cover model -
None
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Degree of protection (IP rating) -
IP43
Depth -
210 Millimetre
Extension possible -
Height -
800 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK09
Nominal current (In) -
400 Ampere
Number of openings for flange plates -
6
Number of rows -
15
RAL number -
9016
Recess depth -
210 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Width -
800 Millimetre
Width in number of modular spacings -
180
