8GK13820KK22

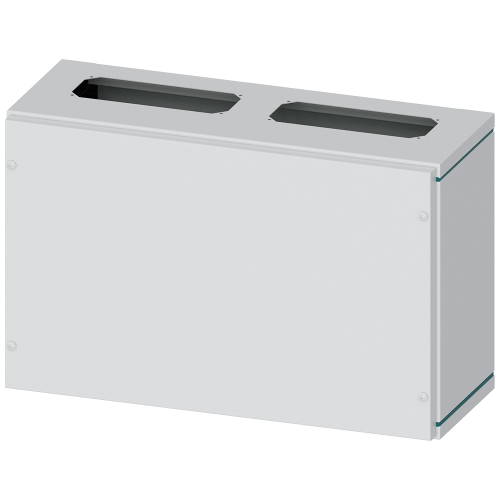

ALPHA 630, distribution box, IP43, Protection class 1, H: 350 mm, W: 550 mm, T: 210 mm, RAL 7035

Manufacturer's No: 8GK1382-0KK22     Manufacturer: Siemens
ALPHA 630, distribution box, IP43, Protection class 1, H: 350 mm, W: 550 mm, T: 210 mm, RAL 7035

Availability On Request

£1,422.84
  • Model: ALPHA 630
  • Distribution box with IP43 protection class
  • Dimensions:
    • Height: 350 mm
    • Width: 550 mm
    • Thickness: 210 mm
  • Color: RAL 7035
Product video
Product video


Product

Manufacturer Material ID -
8GK1382-0KK22
Net Weight -
8.51kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121410

Technical Specification

Number of rows -
-
Number of conduit inlets -
-
Width in number of modular spacings -
-
Number of modules -
-
Plate thickness cabinet -
- Millimetre
RAL-number -
7035
Built-in depth -
210 Millimetre
Type of cover -
Cover
Material housing -
Steel
Impact strength -
IK09
Degree of protection (IP) -
IP43
Mounting method -
Other
Protection class -
I
Internal depth -
210 Millimetre
Type of door -
Single
Plate thickness door/cover -
0.75 Millimetre
Cover model -
None
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Colour -
Grey
Degree of protection (IP rating) -
IP43
Depth -
210 Millimetre
Extension possible -
Height -
350 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK09
Nominal current (In) -
630 Ampere
Number of openings for flange plates -
4
RAL number -
7035
Recess depth -
210 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Type of covering -
Cover
Width -
550 Millimetre

Availability On Request

£1,422.84
