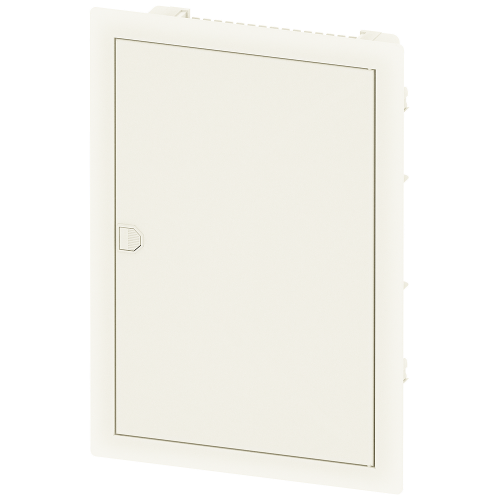

8GB50244KM

SIMBOX XL hollow wall 2-tier 2x 12 MW (14 MW) protection class 2

Manufacturer's No: 8GB5024-4KM     Manufacturer: Siemens
SIMBOX XL hollow wall 2-tier 2x 12 MW (14 MW) protection class 2

View 3D

Availability Back Order

£216.12
  • SIMBOX XL hollow wall
  • 2-tier design
  • Power output: 2 x 12 MW (14 MW total)
  • Safety class: 2

Accessories



Product

Manufacturer Material ID -
8GB5024-4KM
Net Weight -
3.43kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

RAL-number -
9010
Built-in depth -
70 Millimetre
Type of cover -
Door
DIN-rail -
Material housing -
Plastic
Degree of protection (IP) -
IP30
Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
88 Millimetre
Earthing terminal block -
Height -
525 Millimetre
Housing material -
Plastic
Mounting method -
Hollow wall
Neutral terminal block -
Number of rows -
2
Recess depth -
70 Millimetre
Recess height -
525 Millimetre
Recess width -
365 Millimetre
Type of closure -
Other
Type of covering -
Door
Width -
365 Millimetre
Width in number of modular spacings -
24
With DIN-rail -

Availability Back Order

£216.12
