8GK10313KK10

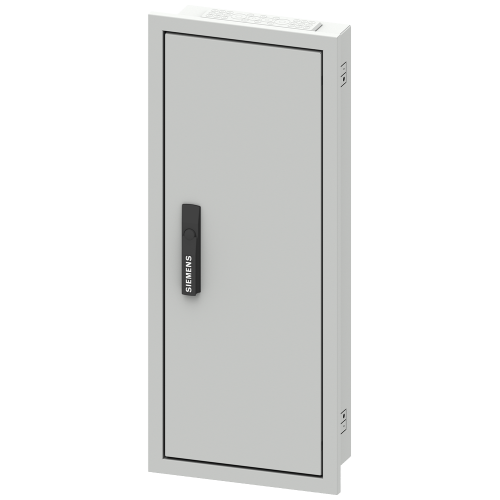

ALPHA 160 DIN flush mounted board

Manufacturer's No: 8GK1031-3KK10     Manufacturer: Siemens
ALPHA 160 DIN flush mounted board

Availability On Request

£370.80
  • Flush-mounted DIN board
  • Model: ALPHA 160
  • Dimensions: 800mm (height) x 300mm (width) x 120mm (depth)
  • SK2 compatibility
Product video
Product video


Product

Manufacturer Material ID -
8GK1031-3KK10
Net Weight -
7.74kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Degree of protection (IP rating) -
IP31
Depth -
120 Millimetre
Extension possible -
Height -
847 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK08
Nominal current (In) -
160 Ampere
Number of openings for flange plates -
2
Number of rows -
5
RAL number -
9016
Recess depth -
120 Millimetre
Surface protection -
Powder coated
Transparent cover/door -
Width -
347 Millimetre
Width in number of modular spacings -
60

Availability On Request

£370.80
