8GK10324KK21

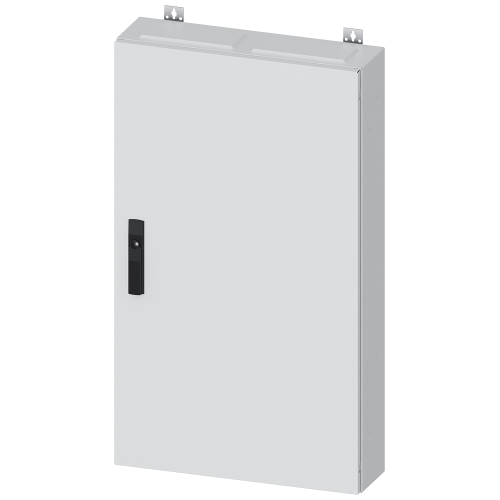

ALPHA 160, wall-mounted cabinet, IP44, protection class 2, H: 950 mm, W: 550 mm, D: 140 mm

Manufacturer's No: 8GK1032-4KK21     Manufacturer: Siemens
ALPHA 160, wall-mounted cabinet, IP44, protection class 2, H: 950 mm, W: 550 mm, D: 140 mm

Availability On Request

£505.04
  • Wall-mounted cabinet
  • IP44 protection rating
  • Protection class 2
  • Dimensions: 950 mm (H) x 550 mm (W) x 140 mm (T)
  • Color: RAL 9016
Product video
Product video


Product

Manufacturer Material ID -
8GK1032-4KK21
Net Weight -
13.40kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
43202005

Technical Specification

Number of conduit inlets -
-
Number of modules -
-
Protection class -
II
Colour -
White
RAL-number -
9016
Built-in depth -
140 Millimetre
Type of cover -
Door
Internal depth -
140 Millimetre
Material housing -
Steel
Impact strength -
IK08
Type of door -
Single
Degree of protection (IP) -
IP43
Plate thickness door/cover -
0.75 Millimetre
Cover model -
None
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Degree of protection (IP rating) -
IP44
Depth -
140 Millimetre
Extension possible -
Height -
950 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK08
Mounting method -
Surface mounted
Nominal current (In) -
160 Ampere
Number of openings for flange plates -
4
Number of rows -
12
RAL number -
9016
Recess depth -
140 Millimetre
Suitable for lightning protection -
Surface protection -
Powder coated
Transparent cover/door -
Width -
550 Millimetre
Width in number of modular spacings -
144

Availability On Request

£505.04
