8GK10722KK21

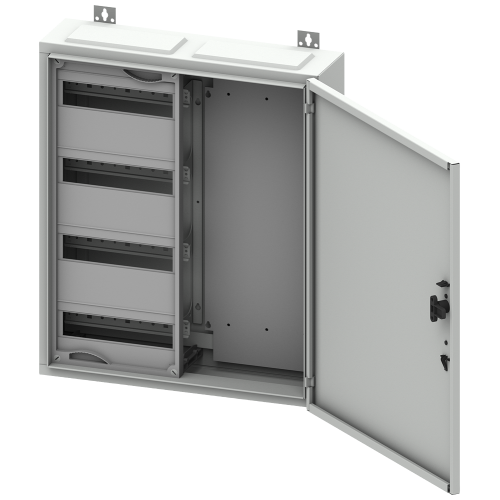

ALPHA 160 DIN wall mounted board

Manufacturer's No: 8GK1072-2KK21     Manufacturer: Siemens
ALPHA 160 DIN wall mounted board

Availability On Request

£957.60
  • Wall mounted board for multimedia devices
  • Model: ALPHA 160 DIN
  • Color: RAL 9016
  • Protection rating: IP31
  • Security level: SK2
  • Dimensions: 650 mm (height) x 550 mm (width) x 140 mm (depth)
Product video
Product video


Product

Manufacturer Material ID -
8GK1072-2KK21
Net Weight -
13.76kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Degree of protection (IP rating) -
IP44
Depth -
140 Millimetre
Extension possible -
Height -
650 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK08
Nominal current (In) -
160 Ampere
Number of openings for flange plates -
4
Number of rows -
8
RAL number -
9016
Recess depth -
140 Millimetre
Surface protection -
Powder coated
Transparent cover/door -
Width -
550 Millimetre
Width in number of modular spacings -
96

Availability On Request

£957.60
