8MF10603BS4

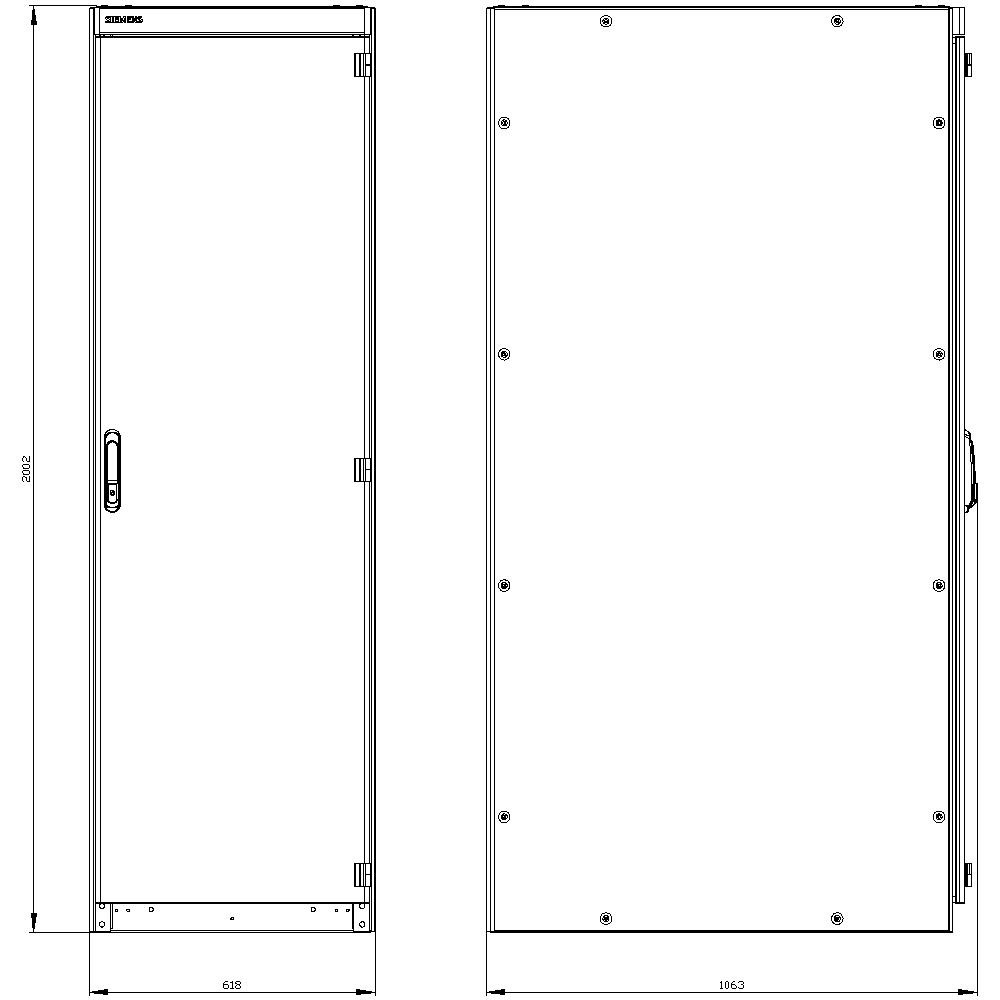

SIVACON, Control panel Empty enclosure, according to IEC 62208, IP40, H: 2000 mm, W: 600 mm, T: 1000 mm

Manufacturer's No: 8MF1060-3BS4     Manufacturer: Siemens
SIVACON, Control panel Empty enclosure, according to IEC 62208, IP40, H: 2000 mm, W: 600 mm, T: 1000 mm

Availability On Request

POA
  • SIVACON Control Panel Empty Enclosure
  • Complies with IEC 62208
  • Protection Rating: IP40
  • Height: 2000 mm
  • Width: 600 mm
  • Depth: 1000 mm
Presentation video
Presentation video


Product

Manufacturer Material ID -
8MF1060-3BS4
Net Weight -
169.07kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
26101601

Technical Specification

Impact strength -
UN
RAL-number -
7035
Material quality -
Other
Degree of protection (IP) -
IP40
Surface finishing -
Powder coating
Floor installation possible -
Degree of protection (NEMA) -
Other
Colour -
Grey
Corner model -
Couplable -
Degree of protection (IP rating) -
IP40
Depth -
1000 Millimetre
Floor standing wall model -
Height -
2000 Millimetre
Impact resistance (IK rating) -
IK09
Material -
Steel
Max. permissible load of the door(s) according to IEC 62208 -
540 Newton
Max. permissible load of the enclosure according to IEC 62208 -
9800 Newton
Mounting plate depth-adjustable -
Number of doors -
1
Number of locks -
0
Suitable for metrical mounting -
Surface finish -
Powder coated
Width -
600 Millimetre
With mounting plate -
