8MF18053VS4

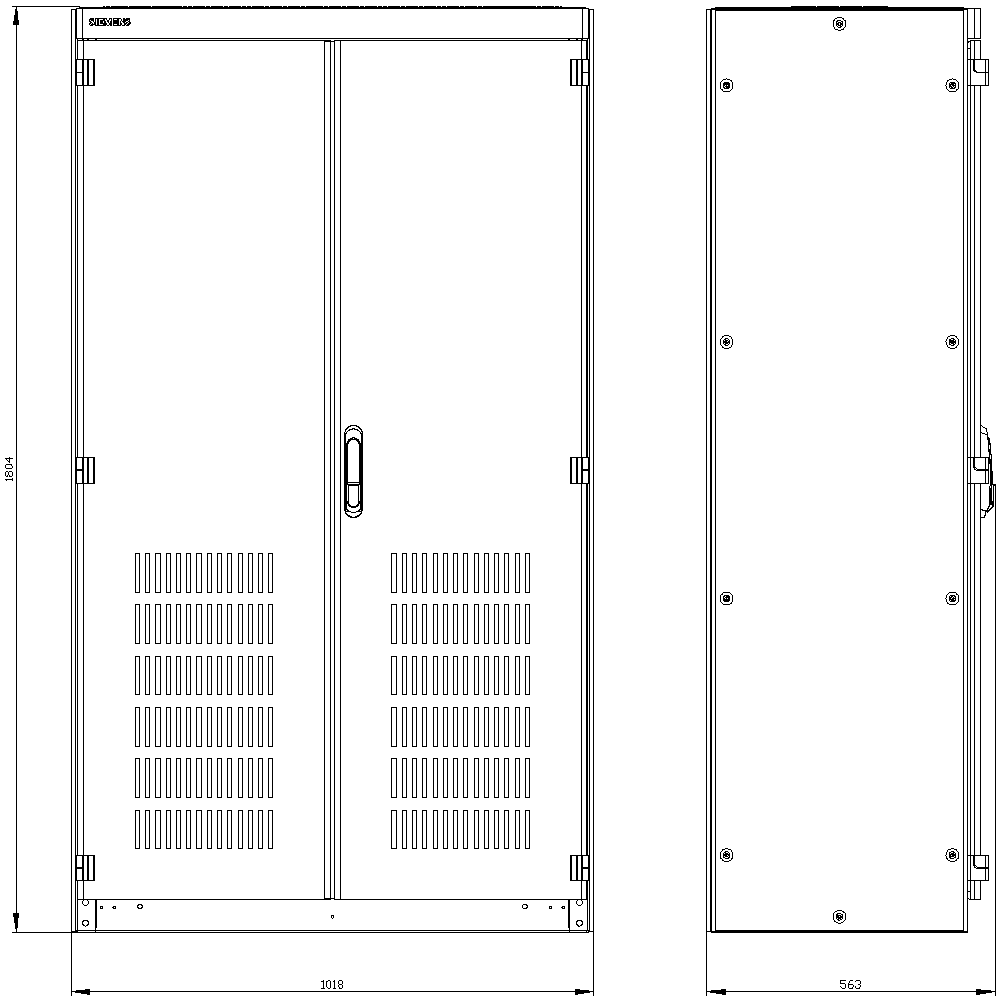

SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openings, IP20, H: 1800 mm, W: 1000 mm, T: 500 mm

Manufacturer's No: 8MF1805-3VS4     Manufacturer: Siemens
SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openings, IP20, H: 1800 mm, W: 1000 mm, T: 500 mm

Availability On Request

POA
  • SIVACON Control Panel Empty Enclosure
  • Complies with IEC 62208
  • Equipped with ventilation openings
  • Protection rating: IP20
  • Height: 1800 mm
  • Width: 1000 mm
  • Depth: 500 mm
Presentation video
Presentation video


Product

Manufacturer Material ID -
8MF1805-3VS4
Net Weight -
153.00kg

Additional Product Information

Commodity Code -
94039010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
26101601

Technical Specification

Impact strength -
UN
RAL-number -
7035
Material quality -
Other
Degree of protection (IP) -
IP20
Surface finishing -
Powder coating
Floor installation possible -
Degree of protection (NEMA) -
Other
Colour -
Grey
Corner model -
Couplable -
Degree of protection (IP rating) -
IP20
Depth -
500 Millimetre
Floor standing wall model -
Height -
1800 Millimetre
Impact resistance (IK rating) -
IK09
Material -
Steel
Max. permissible load of the door(s) according to IEC 62208 -
540 Newton
Max. permissible load of the enclosure according to IEC 62208 -
9800 Newton
Mounting plate depth-adjustable -
Number of doors -
2
Number of locks -
0
Suitable for metrical mounting -
Surface finish -
Powder coated
Width -
1000 Millimetre
With mounting plate -
With ventilation door -

Availability On Request

POA
