8MF18453BR4

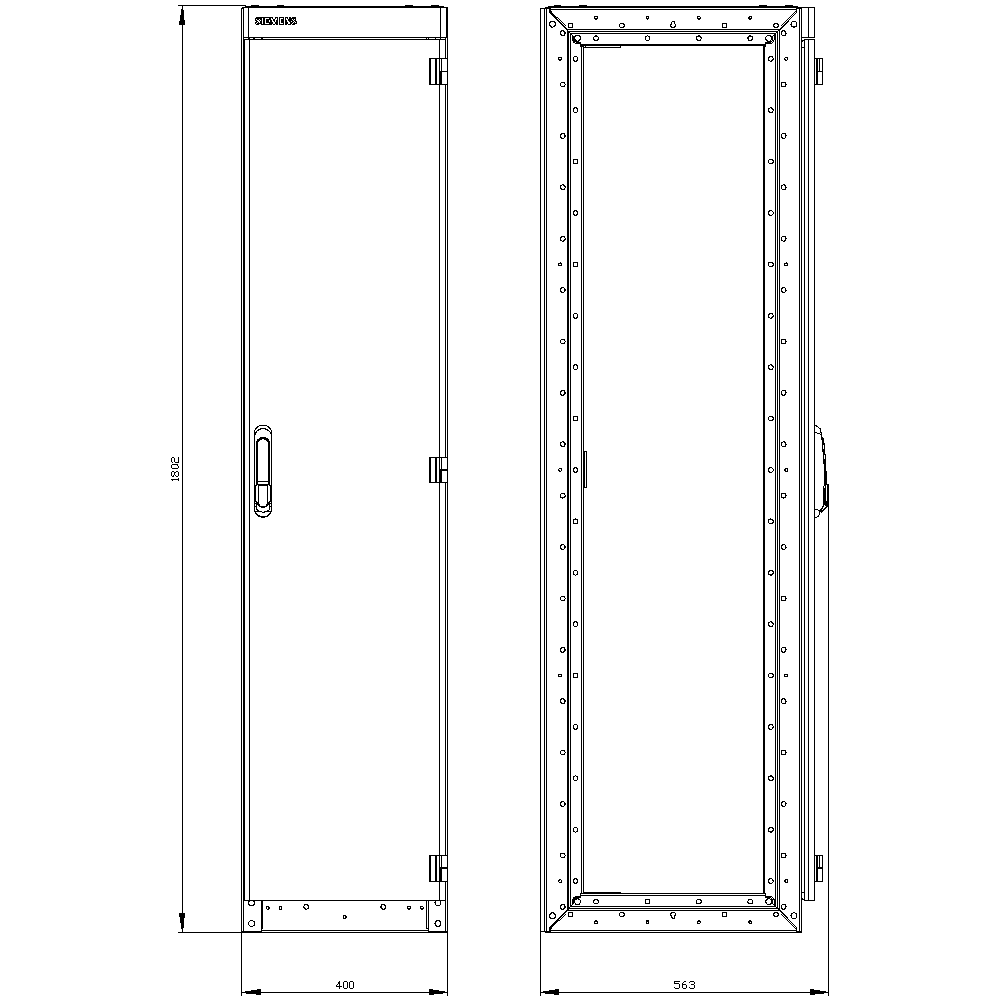

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 1800 mm, W: 400 mm, T: 500 mm

Manufacturer's No: 8MF1845-3BR4     Manufacturer: Siemens
SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 1800 mm, W: 400 mm, T: 500 mm

Availability On Request

POA
  • SIVACON Control Panel
  • Empty enclosure
  • Without side panels
  • Compliant with IEC 62208
  • IP40 protection rating
  • Height: 1800 mm
  • Width: 400 mm
  • Depth: 500 mm
Presentation video
Presentation video


Product

Manufacturer Material ID -
8MF1845-3BR4
Net Weight -
66.00kg

Additional Product Information

Commodity Code -
94039010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
26101601

Technical Specification

Impact strength -
UN
RAL-number -
7035
Material quality -
Other
Degree of protection (IP) -
IP40
Tackable -
Surface finishing -
Powder coating
Floor installation possible -
Degree of protection (NEMA) -
Other
Colour -
Grey
Corner model -
Couplable -
Degree of protection (IP rating) -
IP40
Depth -
500 Millimetre
Floor standing wall model -
Height -
1800 Millimetre
Impact resistance (IK rating) -
IK09
Intermediate mounting -
Material -
Steel
Max. permissible load of the door(s) according to IEC 62208 -
540 Newton
Max. permissible load of the enclosure according to IEC 62208 -
9800 Newton
Mounting plate depth-adjustable -
Number of doors -
1
Number of locks -
0
Suitable for metrical mounting -
Surface finish -
Powder coated
Width -
400 Millimetre
With mounting plate -

Availability On Request

POA
