8US12134AQ01

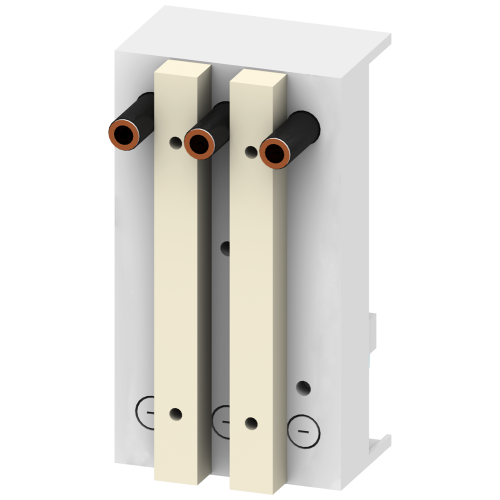

busbar adapter 60 mm SYS. UL 508 Busbar system 60 mm Bar thickness: TT profile Can be used in spring

Manufacturer's No: 8US1213-4AQ01     Manufacturer: Siemens
busbar adapter 60 mm SYS. UL 508 Busbar system 60 mm Bar thickness: TT profile Can be used in spring

Availability Available to order

£224.36
  • Busbar adapter for 60 mm SYS UL 508 Busbar system
  • Bar thickness: TT profile
  • Adapter dimensions: 190 mm length, 105 mm width
  • Compatible with spring circuits for 3VL circuit breaker
  • Pipe contacting for cable outlet top/bottom
  • Suitable for VL150X UL, CG FRAME UL
  • UL rating: 240-600V/150A
  • IEC rating: 690V/160A
Product video
Product video


Product

Manufacturer Material ID -
8US1213-4AQ01
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Type of accessory -
Other
Busbar distance -
60 Millimetre
Min. busbar thickness -
5 Millimetre
Rated current In -
160 Ampere
Width of the adapter -
105 Millimetre

Availability Available to order

£224.36
