8WA10111SF30

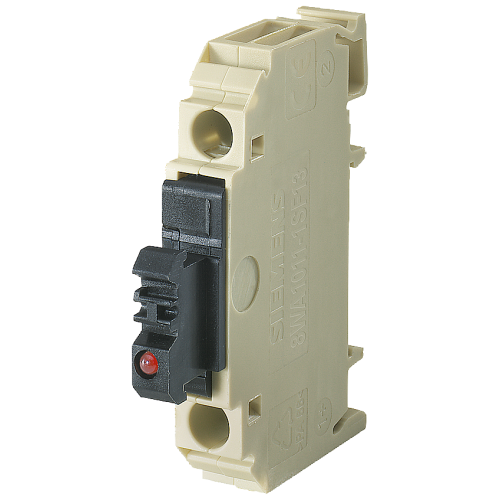

Fuse terminal screw connection for inch fuse link 1/4 x 1 and 1/4 x 1 1/4 .

Manufacturer's No: 8WA1011-1SF30     Manufacturer: Siemens
Fuse terminal screw connection for inch fuse link 1/4 x 1 and 1/4 x 1 1/4 .

Availability On Request

POA

This product has been superseded by

8WH10001HH08

Please check compatibility before purchasing.

  • Fuse terminal screw connection for inch fuse links: 1/4 x 1 and 1/4 x 1 1/4
  • Discontinued since: 09/10/23
  • Successor: 8WH10001HH08


Product

Manufacturer Material ID -
8WA1011-1SF30
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Operation temperature -
- Degrees celsius
Supply voltage for defect-indication -
- Volt
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
57 Millimetre
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
42 Millimetre
Connection position -
Sideways
Type of fuse holder -
Other
Voltage type for defect indication -
AC/DC
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Height -
42 Millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of levels -
1
Rated current In -
6.3 Ampere
Rated voltage -
250 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Type of fuse insert -
Other
Type of indication element for defect indication -
None

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10001HH08

Please check compatibility before purchasing.
