8WA10113DG21

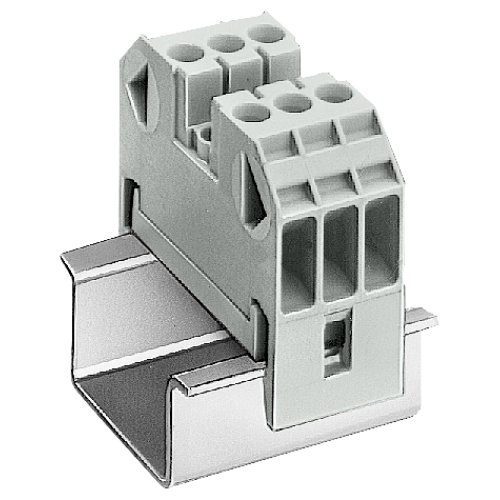

Through-type terminal thermoplast Screw terminal on both sides Terminal block 3-pole, beige 19.5mm,

Manufacturer's No: 8WA1011-3DG21     Manufacturer: Siemens
Through-type terminal thermoplast Screw terminal on both sides Terminal block 3-pole, beige 19.5mm,

Availability Back Order

POA

This product has been superseded by

8WH10000AG00

Please check compatibility before purchasing.

  • Through-type terminal thermoplast
  • Screw terminal on both sides
  • 3-pole terminal block
  • Beige color
  • Dimensions: 19.5mm
  • Product discontinued since: 09/10/23
  • Successor: 3 x 8WH10000AG00
  • For assistance, contact local Siemens office

Follow-up article



Product

Manufacturer Material ID -
8WA1011-3DG21
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Length -
41 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
19.5 Millimetre
Height at lowest possible mounting height -
26 Millimetre
Connection position -
Sideways
Colour -
Beige
Connectable conductor cross section fine-strand with cable end sleeve -
4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
4 Square millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
4 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10000AG00

Please check compatibility before purchasing.
