8WA10116EG24

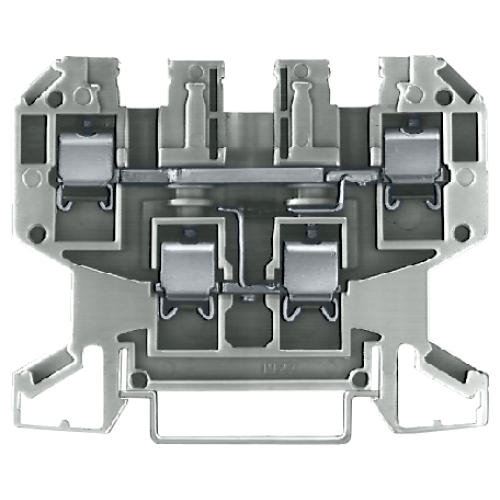

Two-tier terminal thermoplastic connection on both ends diode terminal, 6.5 mm size 4

Manufacturer's No: 8WA1011-6EG24     Manufacturer: Siemens
Two-tier terminal thermoplastic connection on both ends diode terminal, 6.5 mm size 4

Availability Back Order

POA

This product has been superseded by

8WH10205AF00

Please check compatibility before purchasing.

  • Two-tier terminal thermoplastic connection
  • Diode terminal with 6.5 mm size 4
  • Discontinued since: 09/10/23
  • Successor: 8WH10205AF00

Follow-up article



Product

Manufacturer Material ID -
8WA1011-6EG24
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Operation temperature -
- Degrees celsius
Length -
64 Millimetre
Width/grid dimension -
6.5 Millimetre
Height at lowest possible mounting height -
45 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
4 Square millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
4 Square millimetre
Height -
45 Millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Material insulation body -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
2
Rated current In -
32 Ampere
Rated voltage -
250 Volt
Type of component -
Diode
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10205AF00

Please check compatibility before purchasing.
