8WA18227EE00

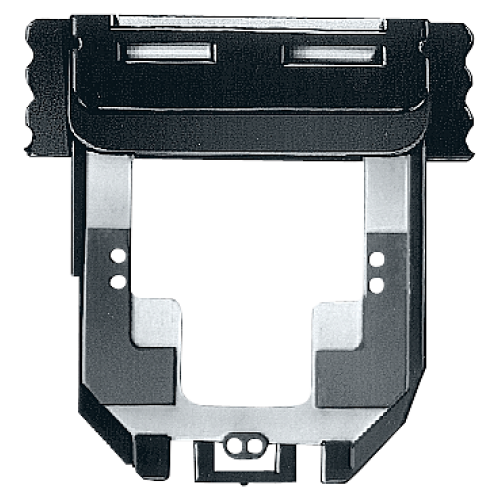

Connector with printed-circuit board for components

Manufacturer's No: 8WA1822-7EE00     Manufacturer: Siemens
Connector with printed-circuit board for components

Availability Available to order

POA
  • Connector designed for printed-circuit board integration
  • Facilitates secure connection of components


Product

Manufacturer Material ID -
8WA1822-7EE00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Operation temperature -
- Degrees celsius
Length -
41 Millimetre
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
29 Millimetre
Connection position -
Above
Number of clamp positions per level -
0
Colour -
Black
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
1.5 Square millimetre
Height -
29 Millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Material insulation body -
Other
Mounting method -
Other
Number of levels -
0
Rated current In -
6.3 Ampere
Rated voltage -
500 Volt
Type of component -
Other
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
10 Millimetre

Availability Available to order

POA
