8WH10000AN01

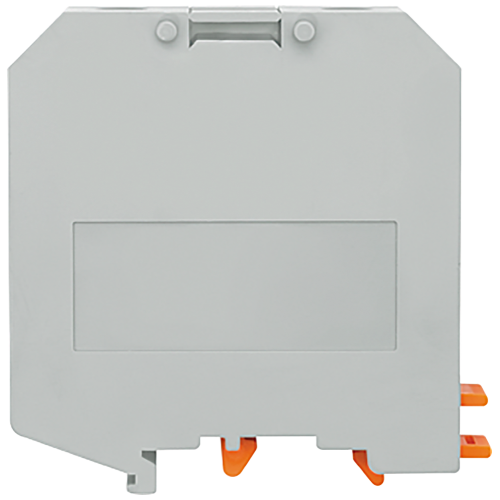

High-current terminal with screw terminal, Cross-section: 25-50 mm2, AWG: 6-1/0, Width: 20mm, Color:

Manufacturer's No: 8WH1000-0AN01     Manufacturer: Siemens
High-current terminal with screw terminal, Cross-section: 25-50 mm2, AWG: 6-1/0, Width: 20mm, Color:

Availability On Request

£15.93
  • Terminal type: Screw terminal
  • Connection type: Through-type
  • Wire size capacity: 50 mm²
  • Color: Blue


Product

Manufacturer Material ID -
8WH1000-0AN01
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
N / N
Minimum Order Quantity -
10
UNSPSC -
39121410

Technical Specification

Length -
70.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
20 Millimetre
Height at lowest possible mounting height -
26 Millimetre
Connection position -
Sideways
Material insulation body -
Other
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
25 Square millimetre
Connectable conductor cross section multi-wired -
10 Square millimetre
Connectable conductor cross section solid-core -
16 Square millimetre
Depth -
75.8 Millimetre
Explosion-tested version 'Ex e' -
Height -
75.45 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
150 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
20 Millimetre

Availability On Request

£15.93
