8WH10000AP00

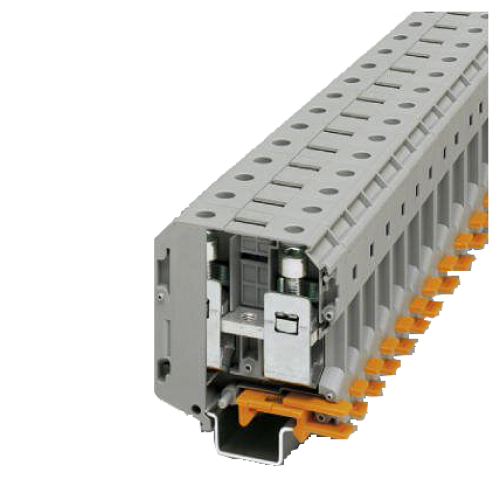

TT TERMINAL 70SQMM, BEIGE

Manufacturer's No: 8WH1000-0AP00     Manufacturer: Siemens
TT TERMINAL 70SQMM, BEIGE

Availability On Request

£39.20
  • Terminal type: Screw terminal
  • Connection type: Through-type
  • Maximum wire size: 70 mm²
  • Color: Beige


Product

Manufacturer Material ID -
8WH1000-0AP00
Net Weight -
0.15kg

Additional Product Information

Country of Origin -
GR
UNSPSC -
39121103

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
16 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
16 Square millimetre
Connectable conductor cross section multi-wired -
16 Square millimetre
Connectable conductor cross section solid-core -
16 Square millimetre
Depth -
70.5 Millimetre
Explosion-tested version 'Ex e' -
Height -
78.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
192 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
20.3 Millimetre

Availability On Request

£39.20
