8WH10000CM07

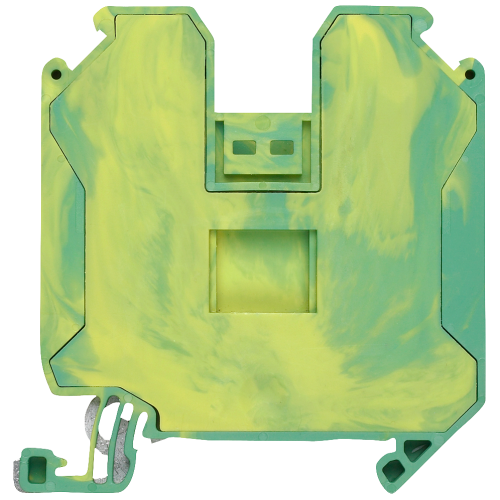

PE through-type terminal with screw connection, terminal width 16.0 mm color green-yellow

Manufacturer's No: 8WH1000-0CM07     Manufacturer: Siemens
PE through-type terminal with screw connection, terminal width 16.0 mm color green-yellow

Availability Back Order

£7.27
  • Terminal type: Screw terminal
  • Terminal size: 35 mm²
  • Color: Green-yellow
  • Features PE/PEN terminal

Accessories



Product

Manufacturer Material ID -
8WH1000-0CM07
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
TR
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Rated voltage -
- Volt
Rated current In -
- Ampere
Length -
60.2 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
65.7 Millimetre
Material insulation body -
Thermoplastic
Connection position -
Sideways
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
Connectable conductor cross section solid-core -
1.5 Square millimetre

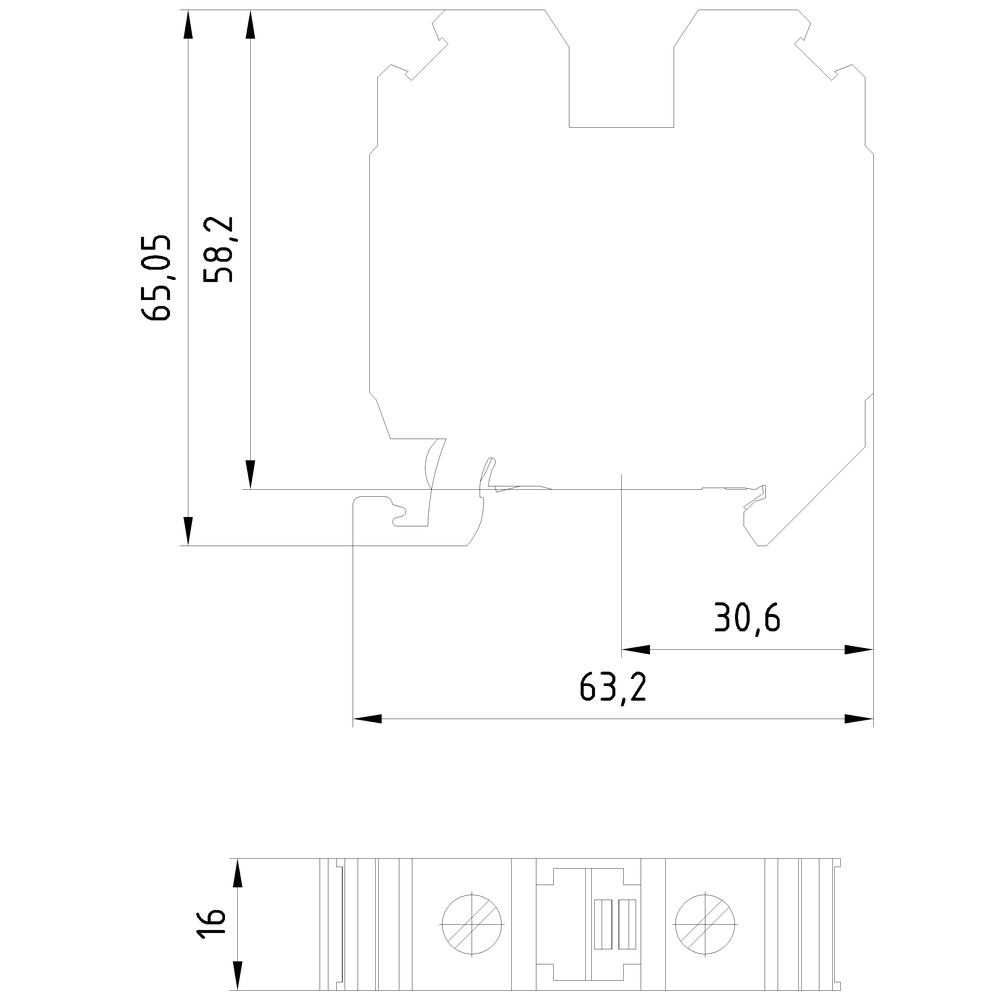

Depth -
65.05 Millimetre
Height -
63.2 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
16 Millimetre

Availability Back Order

£7.27
